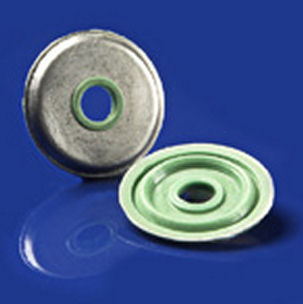

Sealing washer SEELOC®

roundstainless steel

The APM line of self-sealing washers and fasteners are designed to seal out air, water, lubricants and other liquid or gaseous contaminants. SEELOC® self-sealing washers are vibration-resistant, each having a silicone rubber section, molded and bonded to a stainless steel formed washer. These self-sealing washers are designed for use with regular screws, bolts or studs for sealing panels and enclosures having large or irregular clearance holes or slots, and can also be used to seal openings of protruded mounting holes. Upon tightening, a seal is formed within the shank and threaded surface of the fastener as well as around the periphery of the washer face. Features and Benefits: -UL & CSA Recognized for NEMA 4x Type 6 Rating -UL Tested -IP 66/68 Rated -Positive sealing under vacuum or pressure -Install like a conventional washer -Reusable & compatible with all surface finishes -Metal-to-metal contact assures fastening and sealing integrity -Optional seal materials - silicone rubber, BUNA-N, *Viton®, others -Uniform, high-strength design - exceeds 100psi internal & external -Temperature range of -160°F to +500°F (-106°C to +260°C) -Made in USA
