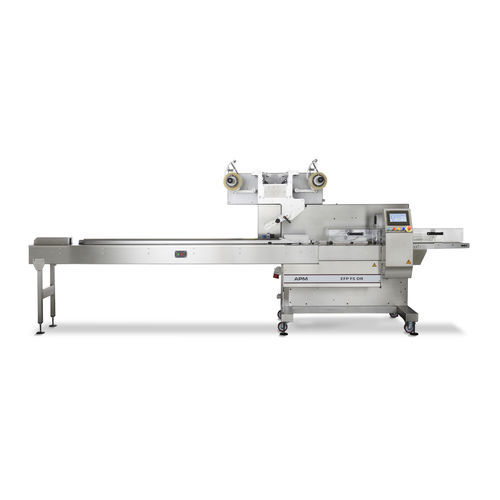

Horizontal bagging machine EFP FS 18 DR

HFFSservo-drivenfor the food industry

The horizontal packaging machine Flow Pack EFP FS 18 DR with rotating end seal crimps is suitable for packaging small and medium size solid products in pillow bag form with flexible packaging film. It has two film reel axes and a splicer mechanism to automatically switch from one film reel to another when one runs out, thus enabling nonstop machine operation. It is suitable for coupling with an automated feeding line. EFP FS 18 DR model integrates four servo driven motors for controlling machine’s main motion axes as well as touch screen functionality for setting machine’s parameters. It has two jaws per axis, length of 180mm, and small axial distance for higher packaging speed up to 150 pcs/min. GENERAL FEATURES • The machine is manufactured according to the European Directive for machinery safety and is CE certified • Manufactured by stainless steel AISI 304 • Left to right operation • Four axis system of servo driven motors for motion control of the infeed conveyor, film infeed, longitudinal sealing wheels and transversal sealing crimps • Two film reel axes • Splicer mechanism for automatic film reel change • Coloured touch screen functionality for setting machine’s parameters • The control allows data storage (recipes) of the machine set up for each product separately • Unprinted or printed packaging film can be used with photocell operation for centering print registration • Three or four pairs of fin wheels are used for pulling and sealing the film and turnover the fin • Two sealing jaws per axis, length of 180mm • Zig zag pattern cut blade with anvil to suit • Fixed film folding box or adjustable former is used depending on the product
