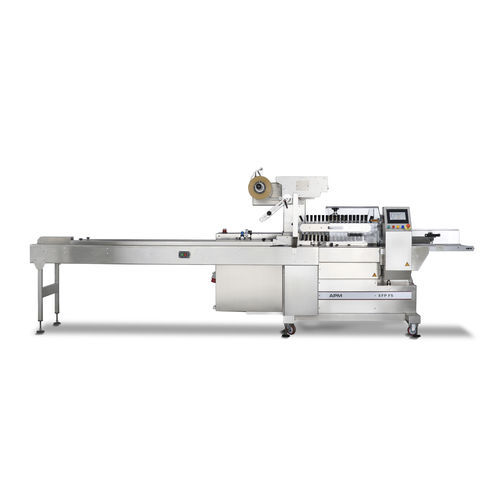

Horizontal bagging machine EFP FS OC

HFFSservo-drivenfor the food industry

The horizontal packaging machine EFP FS OC is a Flow Wrapper with rotating end seal crimps that integrates a servo driven conveyor with brushes – overhead conveyor – above the frame of the fin sealing wheels. These brushes press slightly the top of the products and hold the products together while they move from the film former to the jaws assembly. This machine is mainly used for multy packaging, primary and secondary like croissant multipacks, as well as for products that are difficult to move alongside within the film like round shaped fruits – apples, oranges, peaches. The packaging machine EFP FS OC has five servo driven motors for controlling machine’s main motion axes – infeed conveyor, film infeed, longitudinal sealing wheels, overhead conveyor, and transversal sealing crimps. GENERAL FEATURES • The machine is manufactured according to the European Directive for machinery safety and is CE certified • Manufactured by stainless steel AISI 304 • Left to right operation • Five axis system of servo driven motors for motion control of the infeed conveyor, film infeed, longitudinal sealing wheels, overhead conveyor and transversal sealing crimps • Coloured touch screen functionality for setting machine’s parameters • The control allows data storage (recipes) of the machine set up for each product separately • Conveyor with brushes above the fin wheels, for holding the products, with height adjustment • Unprinted or printed packaging film can be used with photocell operation for centering print registration • Three or four pairs of fin wheels are used for pulling and sealing the film and turnover the fin
