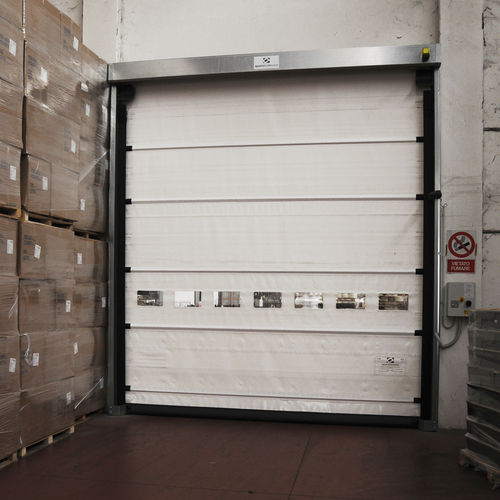

Roll up door MAVIFOOD

stainless steelgalvanised steelPVC

Rapid automatic roll-up door suitable for the separation of industrial spaces for the agro-food sector. Specifications Installation: inside/inside Crossbeam: in press-bending plate in galvanised steel, sloping and finalised to the washing with water jet in order to avoid its stagnation Pillars: in press-bending plate in galvanised steel, stainless steel on demand Curtain: self-extinguishing PVC class II, anti UV and anti mould, stiffened by composite tubes Auto-repair: the open rails allow the automatic curtain reinsertion in case of coming out Anti-damage: the flexible rails and tubes avoid permanent damages to the curtain and structure Windows: windows or visibility stripes Opening system Metal detector: automatic opening command with magnetic loops metal mass sensor Radar: opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need Remote control: transmitter-operating range from 80 to 100 meters Security systems The passage control is managed and controlled in safety through two transmitting photocells (one for each door side) and two receiving ones with amplifier. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241. NO TOUCH SECURITY SYSTEM Motor control Nominal installation power 400V / 3+T Frequency 50 Hz Motor power from 0,37 a 0,75 kW Single speed gear motor installed integrated into or outside the crossbeam
