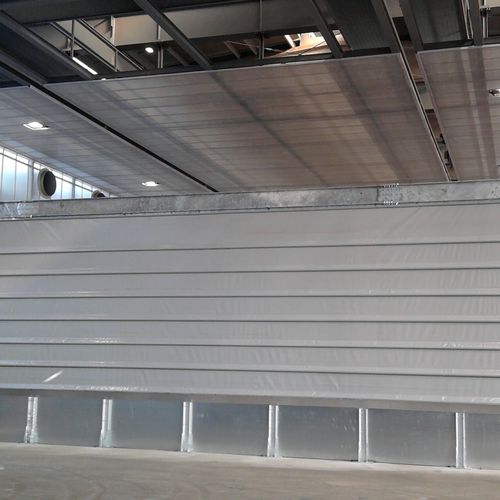

Vertical sliding door REVERSO

galvanised steelPVChigh-speed

Reverso model permits to manage the curtain opening from the top to the bottom, favoring industrial processes that mainly require superior access. Specifications: Application: inside/inside, inside/outside C Pillars: variable section, in press-bending plate in galvanised steel Crossbeam: made with a steel tube and closed under a press-bending plate cover Curtain: self-extinguishing PVC class II, anti UV and anti mould stiffened by tubes Anti-raising: system composed by two security photocells that block the door in case the raising belts accidentally hook one person or one object. Norm UNI EN 13241 Windows: windows or visibility stripes Motor control Nominal installation power 400V / 3+T Frequency 50 Hz Motor power from 1,5 to 2,2 kW Gear motor with perpendicular axle to the crossbeam. Two motors if requested by the dimensions. Technical details Opening/closing speed 0,2 m/s Resistance to curtain tears 3000 N/5cm Rails min. traction resistance 50.000 N Max. Dimensions 15000x8000 mm Max. Strength on primary edge UNI EN 13241 Doors according to the Norm UNI EN 13241
