Signal amplifier ICA electronicfor load cellsminiature
Add to favorites
Compare this product
Characteristics
- Type
- signal
- Other characteristics
- electronic, for load cells, miniature
- Voltage
Min.: 0 V
Max.: 10 V
- Current
Min.: 4 mA
Max.: 20 mA
Description

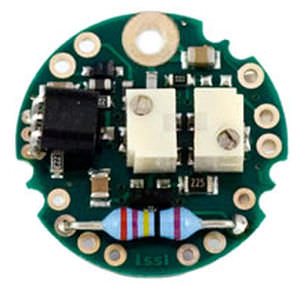

The ICA series of miniature load cell amplifiers measure just 19mm in diameter and 7.6mm in height and are designed for incorporation into the body of a broad range of strain gauge transducers and load cells.
When internal mounting is not possible, the ICA load cell amplifier can also be mounting in-line with the transducer cable inside an enclosure suitable for the application environment. We offer our own compact IP65-rated die cast enclosure the measures just 50mm x 45mm x 30mm which suits most general industrial applications (pictured right).
