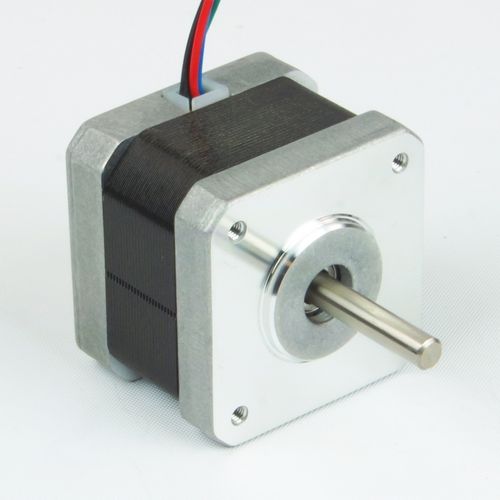

Two-phase stepper motor HT17 series

NEMA 17high-torquemotion control

• 2-phase hybrid step motor • High torque design • Standard NEMA 17 dimensions • Series or parallel wiring • Double shaft version available • Motor is UL Recognized • Encoder options available The HT17-268 two-phase stepper motor is suitable for a wide range of motion control applications. Terminated with 8 motor leads, the motor can be connected in a few different ways, including bipolar series and bipolar parallel. HT17-268 Base, single shaft motor. HT17-268D Double shaft motor. HT17-268D-WAA Motor with WAA type optical encoder mounted to rear shaft and end bell of motor. Recommended for use with Applied Motion stepper drives to perform Stall Detection and Stall Prevention functions. 2,000 CPR (8,000 counts quadrature); A, B, and Z (index) channels; differential, line driver outputs. Mating cable for use with Applied Motion drives (D-sub connector): 3004-195-10 Mating cable with flying leads: 3004-257 UL Recognized The single and double-shaft versions of this motor are UL Recognized in the US and Canada, file no. E472271. The encoder is not included in the listing.
