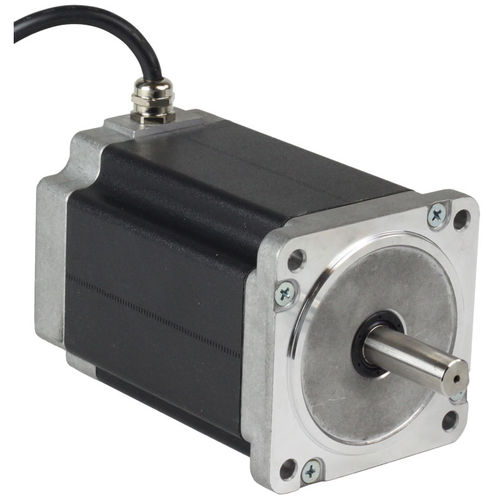

Two-phase stepper motor HW34 series

IP65dust-proofsealed

• 2-phase hybrid step motor • Rated IP65 for wet and dusty environments • High torque design • Standard NEMA 34 dimensions • Integral 10 ft shielded cable w/ cable gland • Sealed laminations • Front shaft seal • Single shaft version standard • Double shaft version with encoder available • Optimized for high bus voltage operation The HW34-696 two-phase stepper motor is suitable for a wide range of motion control applications including wet factory environments and outdoor use. The IP65 rating means the motor is dust proof and resistant to lower pressure water jets. Key features of this rating include an integral 10 ft shielded cable, a nickel plated brass cable gland, sealed laminations and a front shaft contact seal. This motor also has an internal corrosion-resistant film coating, further protecting it in wet and humid environments. A double-shaft version with encoder is available, part number HW34-696D-YAC. IP65 specifies a product that is dust tight (no ingress of dust; complete protection against contact) and protected against water jets (water projected by a nozzle from any direction shall have no harmful effects). UL Recognized The single shaft version of this motor is UL Recognized in the US and Canada, file no. E472271. The encoder and encoder cover are not included in the listing.
