AC servo motor J0400 series
DCbrushless220 V

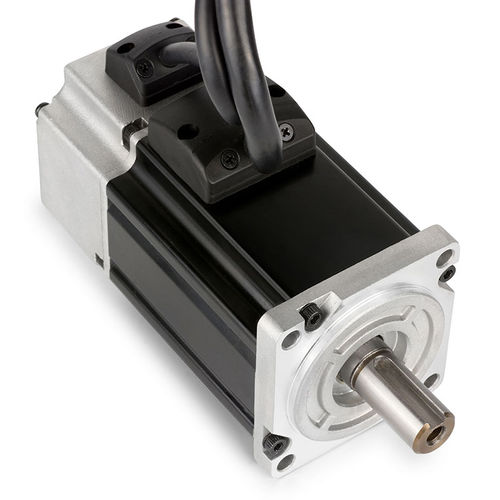

AC servo motor - J0400 series - Applied Motion Products - DC / brushless / 220 V
AC servo motor - J0400 series - Applied Motion Products - DC / brushless / 220 V
AC servo motor - J0400 series - Applied Motion Products - DC / brushless / 220 V - image - 2
AC servo motor - J0400 series - Applied Motion Products - DC / brushless / 220 V - image - 3
AC servo motor - J0400 series - Applied Motion Products - DC / brushless / 220 V - image - 4
AC servo motor - J0400 series - Applied Motion Products - DC / brushless / 220 V - image - 5
AC servo motor - J0400 series - Applied Motion Products - DC / brushless / 220 V - image - 6
Add to favorites
Compare this product


Characteristics

AC/DC
AC, DC
Type
brushless
Voltage
220 V, 110 V, 60 V, 48 V
Protection class
IP65, rugged
Configuration
compact
Applications
with built-in encoder
Other characteristics
high-resolution
Power

400 W
(0.544 hp)

Intensity

Max.: 36 A

Min.: 2.75 A

Torque

Max.: 3.7 Nm
(2.729 ft.lb)

Min.: 1.23 Nm
(0.9072 ft.lb)

Rotational speed

Max.: 6,000 rpm
(37,699.11 rad.min-1)

Min.: 3,000 rpm
(18,849.56 rad.min-1)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

• High torque density • Low rotor inertia • Compact size • High-resolution, incremental encoders (2500 lines, 10000 counts) • IP65 rated for harsh environments High performance brushless AC servo motor. Standard configuration includes high-resolution, incremental encoder feedback. This motor is UL Recognized in the US and Canada, file no. E472271. Part Number: J0400-301-4-000 Frame Size: 60 mm Rated Power: 400 watts Torque Constant: 1.96 in-lb/A Voltage Constant: 13.8 V/krpm Armature Resistance: 0.85 Line-to-Line ohms Armature Inductance: 2.9 Line-to-Line mH Motor Length: 4.68 inch Rotor Inertia: 3.85E-03 oz-in-sec2 Weight: 3.1 lbs Integral Holding Brake: No Operating Temperature: 0 to 40 °C Insulation Class: Class B (130 ºC) Shaft Diameter: 14 mm (0.551 inch) Maximum Radial Load: 54 lbs Maximum Thrust Load: 15.7 lbs
