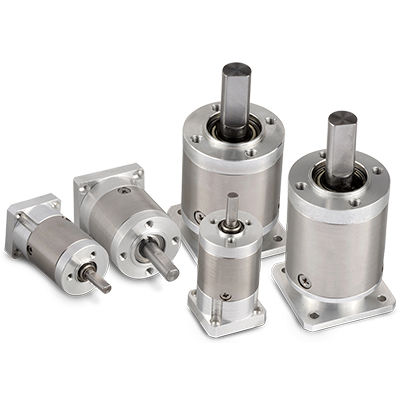

Planetary gearhead PH Mini series

coaxialminiatureprecision

Small motors and integrated motors with pre-assembled planetary gearboxes • True planetary design • Precision cut gears • All metal construction for long life • High torque and precise positioning • Miniature design for use with small motors • Excellent for increasing torque and inertia matching in a small size • Ideal for use with small step motors and TSM11 StepSERVO integrated motors Small But Rugged PH Mini Gearheads are designed to be used with small step motors and StepSERVO motors in the NEMA 8, 11 and 14 frame sizes. The miniature design of the PH gearheads allows these gearheads to be paired with small motors without adversely affecting the outside dimensions of the combined gearmotor. PH Mini Gearheads are offered in three frame sizes: 22, 28 and 35 mm. • 22 mm PH gearhead mounts to NEMA 8 step motors • 28 mm PH gearhead mounts to NEMA 11 step motors and TSM11 StepSERVO integrated motors • 35 mm PH gearhead mounts to NEMA 14 step motors All Metal Construction for Durability and Performance Each PH Mini Gearhead features an all-steel gear train, stainless steel housing, and aluminum front and rear flanges for maximum durability. Each component of the gearbox is precision machined to exacting tolerances before being assembled into the final reducer. The result is a gearhead that can accept input speeds up to 6,000 rpm and provide high output torques with minimal backlash. • All steel gear train and output shaft • Input speeds up to 6,000 rpm • Minimal backlash
