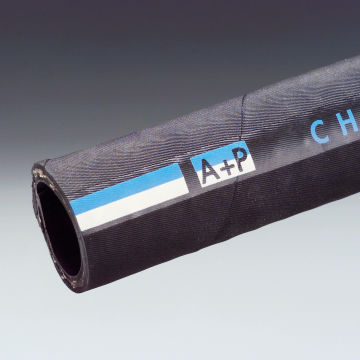

Hydraulic hose 06.5326.00 series

for chemical productsEPDMpolyester

Material inner layer:PE-UHMW Material outer layer:EPDM Material pressure support:polyester braids + 2 Cu stranded wires mesh Material spiral:steel, galvanized Working temperature:from -35 to +100 °C Operating pressure:16 bar Bursting pressure:64 bar Vacuum stability:100 mbar Max. electric resistance outer layer (R):10^6 Ohm Max. electric resistance inner layer (R):10^6 Ohm Max. elec. resistance through the hose wall(Ohm/T):10^9 Ohm Surface inner layer:smooth Surface outer layer:smooth, textured liner Colour inner layer:black Colour outer layer:black Conformity:FDA; BfR Cat III Note to conformity:Declaration of conformity must be already requested at time of order. Afterwards, it is not possible to issue the Declaration of Conformity (GMP compliance). Norm:EN 12115; TRbF 131/2 Marking:according to EN 12115 (ohm) + name, blue/white Product description:suitable for most of the industrial acids, alkaline solutions and solvents Version:spiralized
