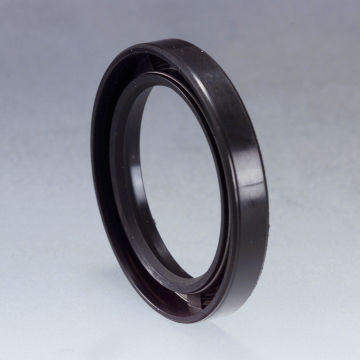

Lip seal 11.5004,11.5005 series
spring-loadedC-ringNBR

Lip seal - 11.5004,11.5005 series - APSOparts® - spring-loaded / C-ring / NBR
Lip seal - 11.5004,11.5005 series - APSOparts® - spring-loaded / C-ring / NBR
Lip seal - 11.5004,11.5005 series - APSOparts® - spring-loaded / C-ring / NBR - image - 2
Add to favorites
Compare this product


Characteristics

Type
lip, spring-loaded
Configuration
C-ring
Material
NBR
Application
for rotating shafts
Temperature limit

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Pressure limit

Max.: 5,000 Pa
(0.7 psi)

Min.: 0 Pa
(0 psi)

Description

Material sealing element:NBR Material metal parts:High-carbon steel SAE 1008 Material spring:Spring steel SAE 1070 Hardness:70 ±5 Shore A Compound designation A+P:NBR 70.45-11 Working temperature:from -40 to +100 °C Pressure:max. 0.05 MPa Peripheral speed:max. 14 m/s Medium stability:for use in mineral oils and greases Norm:version and dimensions according to DIN 3760 On request:Material: HNBR, FKM, VMQ, ACM,
