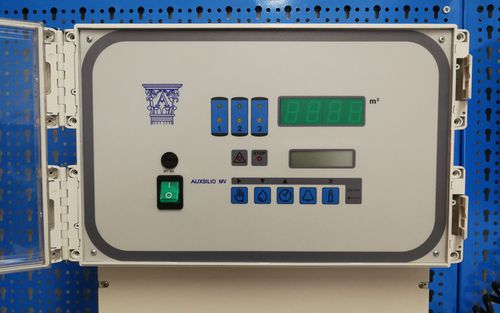

Microprocessor programmer Auxilio

wall-mountedfor valvesfor water softening system

Controller for ionexchange plants – Menu driven pogramming utilizing LCD –display (2 lines). – Choice of languages. – Adaptable to user specific requirements by built-in programmable options. – Simple control utilizing easy to follow symbols. – Suitable for single, double and triple column installations. Model MV: universally applicable for remote control of control valves and pilot valves. Model SV: universally applicable for remote control of solenoid valves (only for single or double installations). – Programmable capacity from 10 up to 999999 m3 °E – Programming a service telephone number possible. – Activation of either: flow, time interval, external contact, real time clock and manual control. – Time delayed regeneration. – Substantial status information employing info key. – Additional functions for service personnel: fast flow, filter exchange without program initiation, regeneration of standby filter. – Large green LED display showing the amount available of softened water. – Inputs : 3x water meter, external start (e.g. by hardness monitor), chemical monitoring, 1 programmable input for regeneration stop and level switch for storage tank. – Outputs: Model MV: 9 potential contacts for 3 control valves with zero flow pulse, 3 service valves, 6 free programmable outputs (potential free) for 3 additional program routines, regeneration, flow rate, flush, alarm and warning contact. Model SV: 9 potential contacts for solenoid valves, 6 free programmable outputs (potential free) for solenoid valves, 3 additional program routines, regeneration, flow rate, flush, alarm and warning contact.
