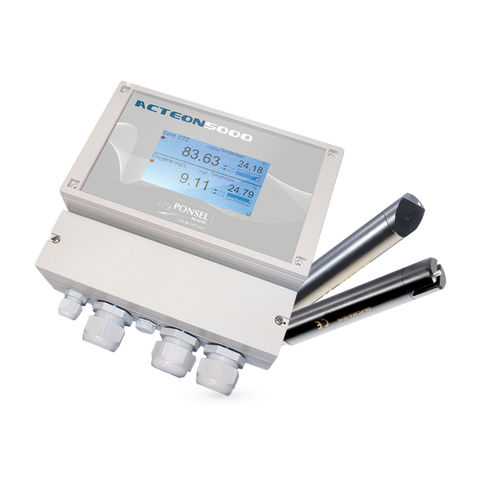

Digital pH/ORP transmitter ACTEON5000

The new digital transmitter ACTEON 5000 allows connection from 2 digital sensors of the range PONSEL MESURE for monitoring parameters pH, ORP, temperature, dissolved oxygen (optically), conductivity, salinity, turbidity (NTU, mg / L ), UV254, TOC, COD, BOD, Suspended Solid (g/L), Sludge Blanket detection (%) .... The measured values are displayed and transmitted by analog or digital way. The functions of preconfigured regulations also optimize process control. ACTEON 5000 is associated with a wide range of digital sensors resistant to disturbances: preamplifying is integrated to the sensor and digital signal processing. All data regarding calibration, history, users and measures are handled directly in the sensor to enable traceability and extreme reliability of the measurements. • 2 inputs sensor • 2 analog input (0/10 V - 0/4-20 mA) • 2 relay input • Large graphics screen: visualization until 4 measures, • Outputs 4-20 mA, Programmable relays (visible state main screen) • Fast and simple intuitive programming • Wide range of digital sensors • Digital output Modbus RS485 • Digital output Ethernet
