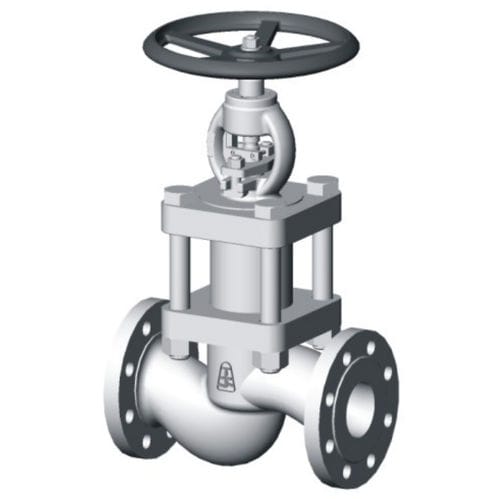

Globe valve C09 series with handwheelelectrically-actuatedshut-off
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel, electrically-actuated
- Function
- shut-off
- Media
- for water, petroleum, for gas, for steam
- Body
- flange, weld, stainless steel
- Applications
- gearbox
- Other characteristics
- standard
- DN
Max.: 80 mm
(3.15 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 400 °C
(752 °F)Min.: -50 °C
(-58 °F)
Description
shut-off globe valve C09.1 and shut-off globe valve with control cone and with bellow C09.5
– non-rotating rising stem
– the bellows prevents the medium from penetrating into the gland space
– standard bonnet construction
– design of the body is straight
– sealing surface is welded by hard facing (13Cr) or Stellite 6 (except for stainless steel types)
– complies with the requirements of the directive 2014/68/EU and standard EN 13 709
– testing is carried out according to standard EN 12266-1; part 2
Design options:
– control cone (for rough control) – type C09.5
– according to TRD 201
– TA-Luft
Medium -
water, steam, gas, oil, petroleum products, non-aggressive and aggressive substances
Material -
1.4308, 1.4408, 1.1138, 1.0619
Operating -
handwheel, gearbox, electric actuator
