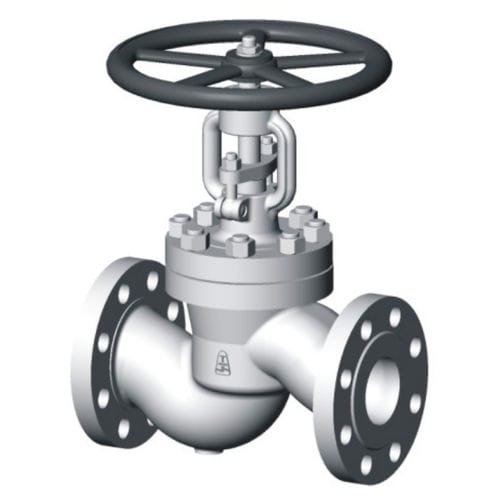

Globe valve V series with handwheelpneumatically-operatedelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel, pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- shut-off, regulating
- Media
- for water, for oil, for gas, for steam
- Body
- welded, PTFE, forged steel
- Applications
- gearbox
- Other characteristics
- remote control
- DN
Max.: 150 mm
(5.906 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 160 bar
(2,320.6 psi)Min.: 63 bar
(913.7 psi)- Temperature
Max.: 550 °C
(1,022 °F)Min.: -10 °C
(14 °F)
Description
shut-off globe valve V30 and shut-off globe valve with regulating disc V40
– design of the body straight
– rotating rising stem
– sealing surface is welded by hard facing (13Cr) or Stellite 6
– complies with the requirements of the directive 2014/68/EU and standard EN 13 709
– testing is carried out according to standard EN 12266-1; part 2
Design options:
– control cone (for rough control) – type V40
– by-pass (balanced disc) for DN 65–150
– branch from forged steel – at the customer´s request
– position indicator
– limit switches
– PTFE – gland packing and bonnet gasket
– locking device
– according to TRD 201
Medium -
water, steam, gas, oil, petroleum products, non-aggressive substances
Material -
1.4408, 1.7357, 1.0619
Connection -
flanged, weld ends, combination
Operating -
handwheel, gearbox, electric actuator, attachment for pneumatic or hydraulic actuator, remote control
