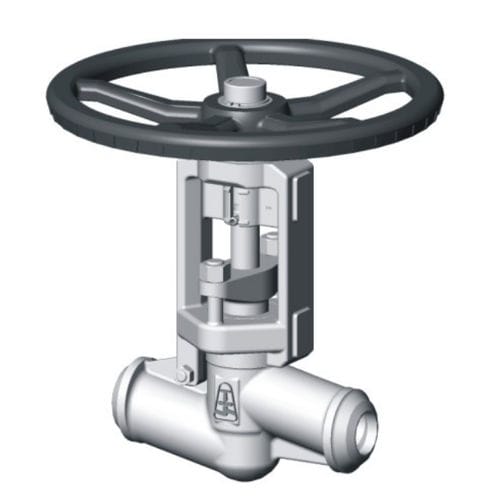

Globe valve V4 series

with handwheelpneumatically-operatedelectrically-actuated

shut-off globe valve V46.2 and shut-off globe valve with control cone V40.2 – non-rotating rising steam – one-piece stem with throttle cone – one-piece forged body without cover – stem gland packing in body – sealing surface is welded by hard facing (13Cr) or Stellite 6 – conical seat – position indicator – complies with the requirements of the directive 2014/68/EU and standard EN 13 709 – testing is carried out according to standard EN 12266-1; part 2 Design options: – control cone (for rough control) – type V40 – according to TRD 201 – locking device – limit switches – gland with scraper ring Medium - water, steam, gas, oil, petroleum products, non-aggressive and aggressive substances Material - 1.0460, 1.5415, 1.7335, 1.7383, 1.4571, 1.4903, 1.7715 Connection - flanged, weld ends, socket weld, threaded ends, combination Operating - handwheel, gearbox, electric actuator, attachment for pneumatic or hydraulic actuator, remote control
