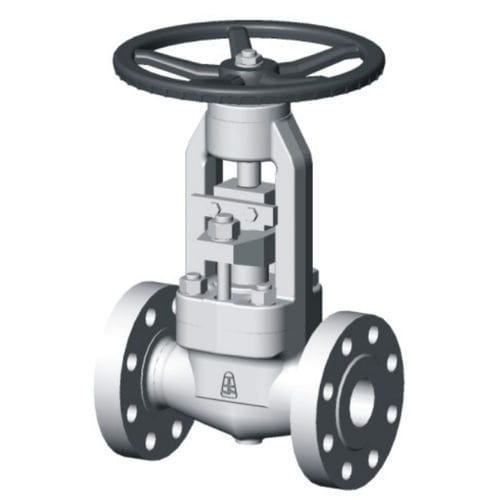

Globe valve V4 series with handwheelpneumatically-operatedelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel, pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- for control, shut-off
- Media
- for water, petroleum, for gas, for steam
- Body
- flange, threaded, welded, 1-piece
- Applications
- gearbox
- Other characteristics
- standard, high-pressure, remote control
- DN
Min.: 10 mm
(0.394 in)Max.: 65 mm
(2.559 in)- Pressure
Min.: 63 bar
(913.7 psi)Max.: 630 bar
(9,137.4 psi)250 bar
(3,625.9 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 600 °C
(1,112 °F)
Description
high-pressure shut-off valve V46.3 and high-pressure shut-off valve with control cone V40.3
– forged material
– non-rotating rising stem
– one-pieces body without cover
– stem gland packing in body
– sealing surface is welded by hard facing (13Cr) or Stellite 6
– position indicator
– complies with the requirements of the directive 2014/68/EU and standard EN 13 709
– testing is carried out according to standard EN 12266-1; part 2
Design options:
– control cone (for rough control) – type V40.3
– according to TRD 201
– limit switches
– gland with scraper ring
Medium -
water, steam, gas, petroleum products, non-aggressive and aggressive substances
Material -
1.0460, 1.5415, 1.7335, 1.7383, 1.4571 (only up to PN 400), 1.4903
Connection -
flanged, weld ends, threaded ends, combination
Operating -
handwheel, electric actuator, gearbox, attachment for pneumatic or hydraulic actuator, remote control
