Piston valve B10.3
with handwheelfor controlfor water

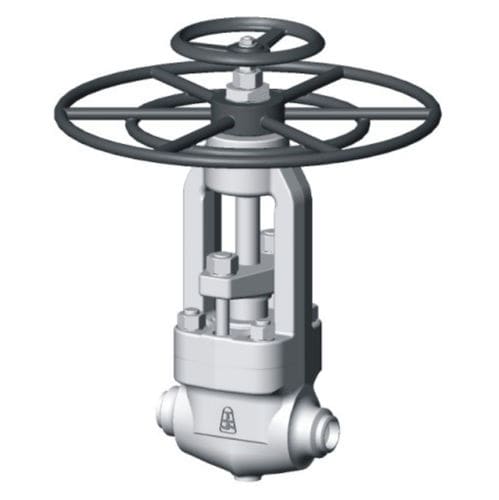

Piston valve - B10.3 - ARAKO spol. s r.o - with handwheel / for control / for water
Piston valve - B10.3 - ARAKO spol. s r.o - with handwheel / for control / for water
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
with handwheel
Function
for control
Media
for water
Body
flange, welded, straight
Other characteristics
standard
DN

Max.: 50 mm
(1.969 in)

Min.: 10 mm
(0.394 in)

Pressure

Max.: 500 bar
(7,251.9 psi)

Min.: 63 bar
(913.7 psi)

Temperature

Max.: 580 °C
(1,076 °F)

Min.: -10 °C
(14 °F)

Description

body without cover – rotating rising stem – two handwheels, large wheel for opening and closing, small for removal of dirt from the seat – sealing surface is welded by hard facing (13Cr) or Stellite 6 – straight-way pattern – complies with the requirements of the directive 2014/68/EU and standard EN 13 709 – testing is carried out according to standard EN 12266-1; part 2 Design options: – graphite gasket Medium - turbid boiler water (boiler mud and sludge) Material - 1.0460, 1.7335, 1.7383, 1.4571 (only up to PN 400)
