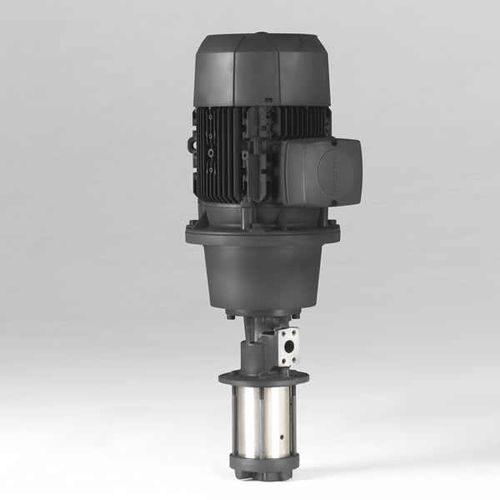

Screw pump H seriesfor lubricantswith electric motorsemi-submersible
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Fluid
- for lubricants
- Operation
- with electric motor
- Priming
- semi-submersible
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- high-pressure
- Fluid specification
- cutting fluid
- Protection level
- IP55
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 650 l/min
(171.71183 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 100 bar
(1,450.377 psi)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
High pressure pumps
High pressure spindle pumps. Solution for deep boreholes and the high pressure clearance of chippings.
PUMPED LIQUIDS
Light, non-explosive, clean liquids with at least 5% of lubricant.
Cutting fluid
Lubricants
Kinematic viscosity: 2 mm2/s – 400 mm2/s
Filtration: Max. 40 microns
Contamination: ISO446 20/18/15 - NAS 9
