Vertical bagging machine

VFFSautomaticsachet

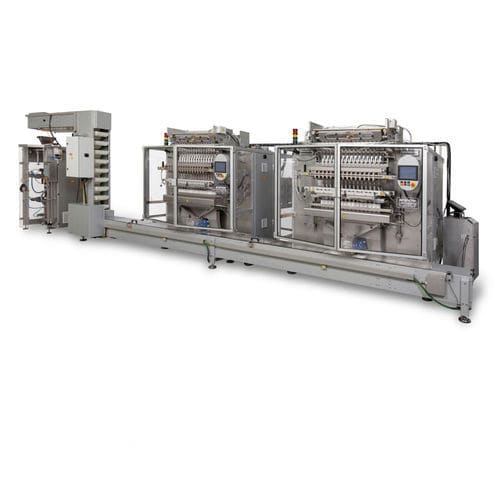

The VFFS complete line, groups stick pack and flat sachets into stand-up pouch or pillow bags to fulfill the requirements of modern distribution. The Vertical Form Fill & Seal Machine is a complete line with two ARANOW multilane packaging machines of 15 lanes each connected by buckets belt to a VFFS. The line enables production of up to 1.800 spm, grouping the stick pack or flat sachet units into gussets, pillow bags or stand-up pouches in an intermittent or continuous motion, being able to work at the same number of cycles as the machine. Though single-dose product groups are usually multiples of the number of lanes, the option of the unitary counter exists. Main features ** • Number of sachets/bag configurable from screen (min 5 – max. 50) • Intermittent wrapper with maximum production speed of 100 bags/min • Pillow bags • Compact and integrated design with stickpack/sachet machines • One-piece former • Automatic detection of irregularities in the sealing temperature or in the pneumatic pressure of the network, guaranteeing a correct seal at all times • Automatic detection of the end of the reel and motorised lateral regulation of the reel holder • Open access to main components for maintenance (without tools) Available options • Stainless version • Quick reel change • Centring system for printed film • Film dragging by belts and vacuum • Constant heat jaws for PE film and high speeds • Motorised film unwinder with screen-adjustable film tension control • Automatic self-centring of the reel, "Autotracking"
