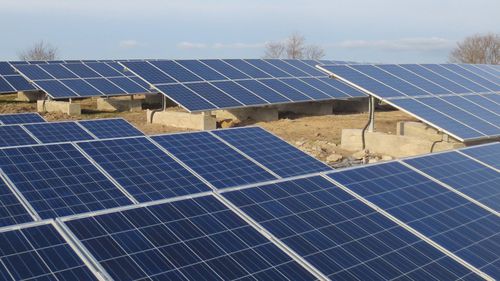

Ground-mount PV mounting system FMS-V2B

with concrete foundations

The FMS-V2B ground mounting system is developed for installation on terrain that may not be rammed, such as landfills. We offer the appropriate foundation for each soil type: pile-driven foundation (also with load distribution plates), concrete foundation (e.g. for landfill sites), borehole (in rocky ground) and steel pressure plate foundation (for soft soils). The tables are erected as standard and then the concrete base is cast with in-situ concrete. This ensures optimum economy. The posts are hot-dip galvanized, the module and cross beams are thick-film galvanized. The bolting elements are mainly made of V2A, thus ensuring a long service life of the system. Advantages Optimal for the construction on terrain that must not be rammed Very robust construction with high stability and maximum safety Optimum economy due to low system and installation costs Short assembly time, simple assembly and convenient module installation Applicable for all modules with or without frame Long service life due to high quality materials Individual set-up based on our standard systems Good accessibility for terrain maintenance Optimal construction site logistics with just-in-time delivery Example table layout Module size: 2261 x 1134 x 35 mm Module power: 550 Wp Module arrangement: 2 modules vertically on top of each other Row configuration: 26 modules in a row Table length: 29914 mm Table size: 2 x 26 = 52 modules Table power: 28.6 kWp
