GPS receiver AS0077601

satellite

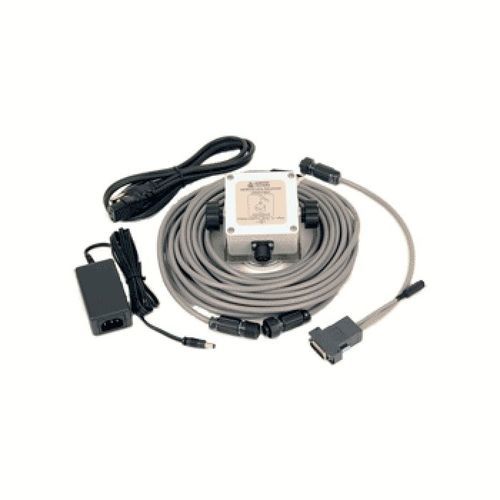

The Arbiter Systems®, Inc. Remote GPS Receiver provides GPS synchronization for the Doble Model F6150 at the standard GPS frequency (L1 band) of 1575.42 MHz. Thus providing the best timing accuracy for the Model 933A and the Doble Model F6150. Although the remote GPS receiver is sealed against the weather, it is designed for temporary outside operation. 15 m (50 ft) of special antenna cable. Separate power supply Connects directly to the Doble Model F6150 25-pin connector. Position Accuracy 10 meters, rms, 90 % confidence Satellite Tracking Twelve (12) channel, C/A code (1575.42 MHz). Receiver simultaneously tracks up to twelve satellites. Acquisition 2 minutes, typical, cold start I/O Configuration Output Connectors DB-15
