Signal converter 10889A

fiber opticsDIN railCMOS

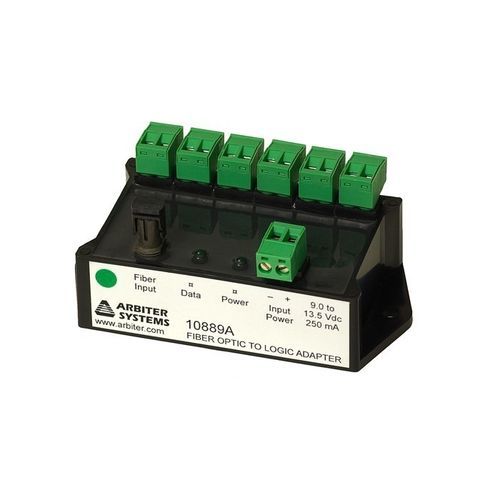

The Model 10889A Fiber-Optic to Logic Adater converts signals received via optical fiber into CMOS logic levels. The received signal is distributed to six individually-buffered outputs, each using a two-pin connector. Mating connectors are supplied with the unit. The outputs deliver 0 volt to 5-volt logic signals, with a high output corresponding to fiber illumination. A green light-emitting diode (LED) is lighted whenever the output levels are high. Converts signals from optical fiber to CMOS logic level signals Type ST fiber optic connection. Up to six pluggable terminal strip outputs available Works with all Arbiter GPS satellite-controlled clock products Specified with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS Fiber. Ordering checklist: Required: Power Supply: Choose from the many listed under the Accessories tab. Note: Not all power supplies have DIN Rail mounting available. Optional (Must be chosen at time of order): DIN Rail Mounting for the 10889A module. Look on the Options tab for ordering information. DIN Rail Mounting for select power supplies. Look on the Accessories tab for power supply details.
