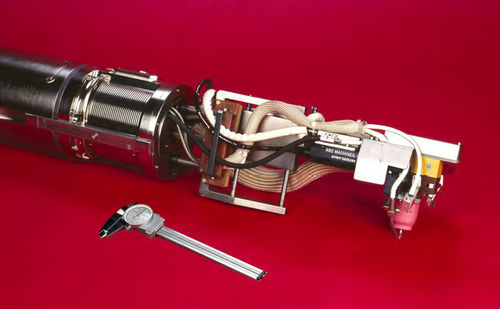

The Arc Machines' Model 73 is an inside diameter welding head for ID cladding or welding of pipe joints. It is a rugged, field-proven weld head for use in small diameter pipe and other limited radial clearance applications.
Small-bore ID weld head, with 250 A GTAW torch
Range from 5.160" to 20" ID (131 mm to 508 mm) with direct-view color TV cameras
Pneumatically operated cylinders that center and position the weld head
Extremely fast mount / dismount times
Automatic arc voltage control
Cross-seam steering
Synchronized torch oscillation and pulsed wire feed
Built-in wire feeder and wire spool holder
1" AVC stroke (25 mm) to allow use in 5.160" (131 mm) ID
2" AVC stroke (50 mm) to allow use in 5.66" (144 mm) or larger ID
Large Selection of Torches are available for limited reach welding inside diameters as small as 1.125" ID (special applications)
Remote torches with motorized wire feed manipulators and video options available
