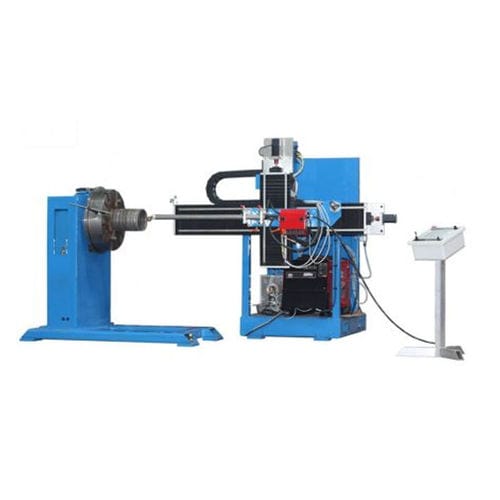

Automatic cladding machine ARC-05HM

HORIZONTAL GMAW CLADDER The ARC-05HM Horizontal GMAW Cladder allows for high deposition rates for ID and OD welding. The system is integrated with a pulsed power supply and Lincoln Electric’s Power Wave Manager Software to provide maximum weld parameter control and process monitoring. ARC 5 PLC controls with touch screen operator interface steers the servo driven cross slides and headstock with 3-jaw chuck. Features: Standard ARC 5 PLC control unit with touchscreen operator interface, weld schedule storage, and process monitoring through Lincoln Electric’s Power Wave Manager Software. Self-contained, skid mounted unit with up to 450 amp welding power supply, and water cooled GMAW torch. Horizontal overlay process allows high deposition rates. Heavy duty slides with up to 50” horizontal travel and 24” vertical travel. Excellent system for cladding for corrosion or wear resistance. System performs well with inconel, Stellite and carbide covered wires.
