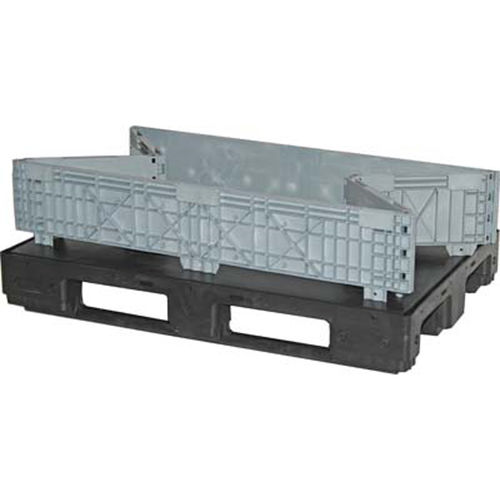

Foldable pallet collar AKA 1208-P1R

plastic

The Modula system from Arcawa is always based on a Modula system pallet with a circumferential groove. The Modula plug-in frames are inserted into this circumferential groove. The system can be expanded to the desired height with additional plug-in frames in steps of 200 mm and, if necessary, closed with the optionally available Lid/ cover. The system offers the possibility of creating compartments with optional horizontal intermediate layers. The Modula 1208 can be used with a load of max. 4000 Kg and can also be used in the high rack with max. 800 kg. The Modula 1208 starter set contains 1 system pallet & 1 frame 1 x Modula pallet 1208 (system pallet) Item Number: AKA1208P Outside: 1200 x 800 x H 160 mm Material: PP, polypropylene - black Stat. Load: max. 4000 kg Dyn. Payload: mx. 1600 kg Shelf load: max. 800 kg Closed surface - circumferential groove Floor support: 2 outside runners and 2 feet in the middle Tare: 22.4 kg + 1 x pallet frame Modula 1208R (Attention: These frames only fit into other Modula 1208 frames or into the groove of the Modula 1208 system pallet) Item number: AKA1208R Outside : 1200 x 800 x H 235mm (folded 1200x235x100 mm) Inside: 1152 x 752 x H 200mm Volume: 0.172 m3 Material: PP, polypropylene Tare: 13.9 kg The required fill level can be adjusted to your logistical needs with additional pallet frames (see options) in 200 mm increments. In addition to a static load capacity of up to 4000 kg and a dynamic load capacity of up to 1600 kg, the Modula system is ideal for all logistics applications, even with heavy loads, regardless of whether it is in the automotive, retail, machine or supplier industries.
