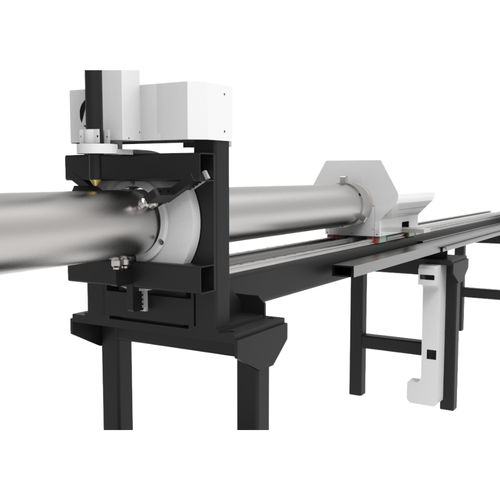

Flame cutting machine Tube-S

plasmafor metaltube

The Tube S by ARCBRO® is an affordable CNC round and square pipe cutting solution that comes in a compact footprint. It can do pipe OD from 30 to 120 mm and pipe length from 2500 to 15.000 mm by plasma. This two-axis CNC pipe cutting machine has a footprint of only 0.6m wide and can rapidly profile aluminum, stainless steel, and mild steel pipes with ease. User powerful and friendly Italy libellula software allows quick understanding and efficient use of Tube S machines after a short training. NC data file transfer to Tube S from CAD/CAM software available as an option. • Effective cutting size: φ30-120mm, 3000-6000mm long • Two axis • Fangling F2300A system • HYD PTHC-200DC-PT • Standard three-jaw chuck + three-jaw welding chuck • Panasonic servo motor Maximize Productivity To extreme the product efficiency. Tube-S is designed for high-speed running and rotation. It can be 12000mm/min. The Tube-S adopts a double chuck design to ensures that the tube will not jump during that so fast cutting process, Minimize vibration.
