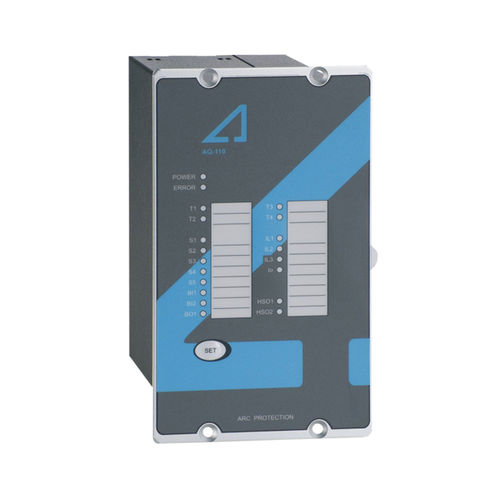

Over-current protection relay AQ-110Parc flashtrip circuit1 NC
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- over-current, arc flash, trip circuit
- Contact configuration
- 1 NC, 3 NO, 4 NO
- Network
- DC
Description
AQ 110 is a sophisticated micro-processor based arc flash protection unit with combined current and arc sensing. Combined current and arc sensing provides an integrated dual trip criteria. It is designed to minimize the damage caused by an arcing fault (arc flash) by tripping the circuit breaker sourcing the fault current. The AQ 110 complete system self-supervision function provides the highest level of dependability by continuously monitoring all internal system functions along with external connections.
Catalogs
AQ 100 SERIES
36 Pages
