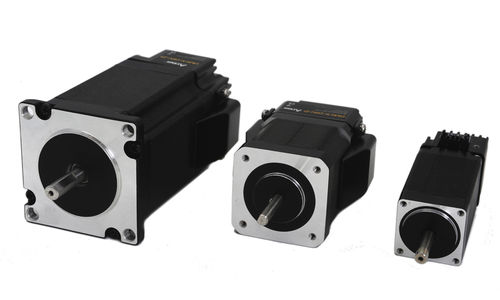

DC motor DMX-K-DRVstepper24 Vintegrated-drive
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- stepper
- Voltage
- 24 V
- Other characteristics
- integrated-drive
Description
Integrated NEMA 11/17/23 Stepper Motor Microstep Driver/Controller
Specifications
12 to 24 VDC Voltage Input
100mA to 2.5A support
Full/Half/Quarter/16 microstep
Configurable as Driver mode or Controller mode
Driver mode: One clock (Pulse/Dir) or two clock
(CW/CCW) support
Driver mode: 200K maximum pulse rate input
Controller mode: Absolute, incremental, jogging move type support
Controller mode: 4 motion profile selection, start/stop input, status output
Controller mode: 16K maximum pulse rate output speed
Opto-isolated differential Pulse/Dir inputs (motion profile selector in controller mode)
Opto-isolated driver enabled input (start/stop input in controller mode)
Opto-isolated over-temperature alarm output (status output in controller mode)
Available in NEMA 11, 17 and 23 sizes in double and triple stack lengths
Software configurable
