Filter tube

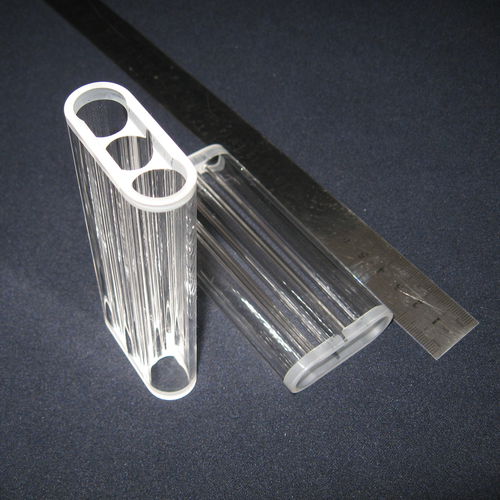

ARD Optics offers a wide range of flow tubes and reflectors for lasers. Single and Multi-Hole Cavity Filters and Laser Flow Tubes Our company offers standard and specific laser flow tubes that are used around laser lamps and rods in water cooled lamp pumped lasers. Simultaneously flow tubes protect the laser elements from undesired UV radiation and absorbing it as well as the emissions from the side of the rod, in this way enhancing the efficiency of the laser. We manufacture laser flow tubes from the following materials: • Pyrex Glass • Borofloat 33 • Fused Silica • Cerium Doped Fused Silica • Samarium Doped Glass S7005 (5%Sm), S7010 (10%Sm) The materials are listed in accordance with their cost starting from the cheapest option. Our specialists carry out all the stages of processing: cutting, drilling, grinding and polishing, keeping the precise parallelism of the holes and other tolerances. Sizes: Inner Diameter: 2-40 mm,+/-0.05-0.1mm Length: 10-130mm, +/-0.05-0.1mm Parallelity of Holes: 0.05-0.1mm, The laser flow tubes are designed and manufactured upon the customer’s request.
