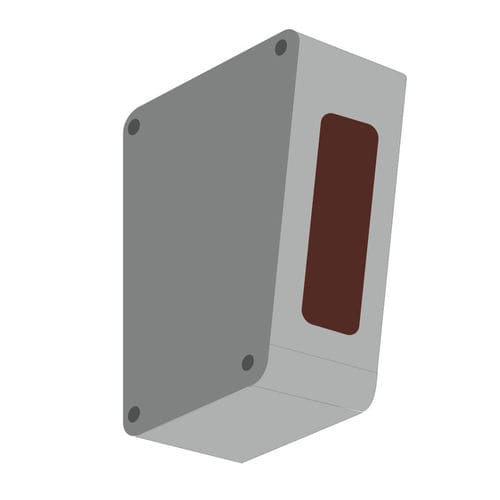

Laser triangulation distance sensor AN-11TL

IP67high-precisionnon-contact

Triangulation rangefinder AN-11TL is designed for measuring the distance to the object with high accuracy without contacting it. Summary The aim of triangulation rangefinder is determining the distance to the object, the offset relative to the meter in real time, the surface geometry. The rangefinder has IP67 protection degree and data transfer with help of RS232, RS485 and Ethernet interfaces. The triangulation rangefinder AN-11TL has the next possibilities: •contactless determination of the distance to the objects •high-frequency measurement •measurement of minimum or maximum distance •ability to integrate with robots, machines, automatic lines Specifications Basic specifications of Triangulation rangefinder AN-11TL Light source Type Red, Green, Infrared, Blue semiconductor laser Wavelength 405, 532, 658 (default), 808 Laser class Class 2 Laser Product Output 0,1..5 mW General information Measuring range, Z-axis (Height) 20..2700 mm Linearity, Z-axis (Height) ± 0.05% of the range Measurement frequency 9,2 kHz Interface RS232, RS485, Ethernet Temperature characteristics when changed by 1° C, the characteristics change by 0.01% Enclosure rating IP67 Housing aluminum Weight 50...670 g Environment resistance Shock resistance 30 G/6 ms Operating ambient temperature, °С 0 .. +60°C Operating ambient humidity 5-95% RH (no condensation) Vibration 20 G /10 ... 1000 Hz, 6 hours in X, Y and Z
