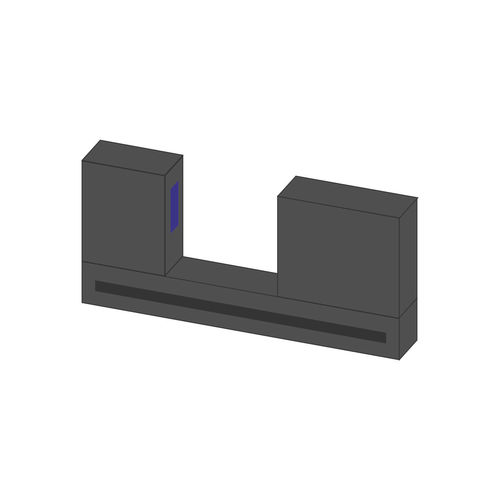

Laser micrometer AN-21SM

opticalhigh-precision

The optical micrometer AN-21SM can measure geometrical parameters and the object position in high-precision mode, measure geometric dimensions in cross section and average diameter of the object, etc. Summary The optical micrometer AN-21SM can measure geometrical parameters and the object position in high-precision mode, measure geometric dimensions in cross section and average diameter of the object, control, and troubleshooting of the finished parts, control of the details without dismantling. Micrometer refers to 1 class of laser products, so it is absolutely safe. Specifications Basic specifications of Optical Micrometer AN-21SM Light source Wavelength 660 nm Laser class Class 1 Laser Product Output 10 mW General information Measuring range, Z-axis (Height) 25..100 mm Linearity, Z-axis (Height) 3 micrometers Measurement frequency 9,4 kHz Interface RS232, RS485, Ethernet Temperature characteristics when changed by 1° C, the characteristics change by 0.01% Enclosure rating IP67 Housing aluminum Weight 600 g Environment resistance Shock resistance 20 G Operating ambient temperature, °С 0 .. +60°C Operating ambient humidity 5-95% RH (no condensation)
