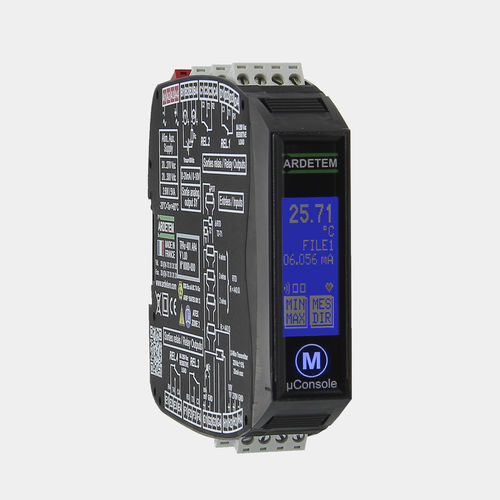

Analog signal converter TPAv 401

universalDIN rail

The TPAv 401 is a signal conditioner with a display. Equipped with simulation mode that allows validating the configuration or the installation. Easy programming on the front face with micro-console or SlimSet PC Software. TECHNICAL SPECIFICATIONS PROGRAMMABLE SIGNAL CONDITIONER, UNIVERSAL INPUT AND POWER SUPPLY, ANALOG OUTPUT, WITH DISPLAY AND PROGRAMMING ON FRONT FACE Universal input: mA,mV,V,TC,PT100,resistance,… Bidirectional current and voltage input up to +/-270 VDC Accuracy: 0.1% Typical response time: 150 ms Scale factor programmable Supply for 2-wire sensor Analog output For DIN rail mounting Programmable by software or tactile µconsole (optional) Universal power supply: 20 to 270 vac and 20 to 300 vdc
