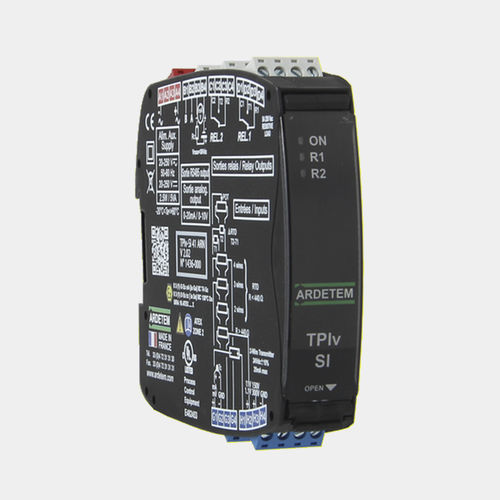

Analog signal conditioner TPIv-SI 40

programmableDIN rail

The TPIv-SI series has intrinsically safe inputs: they are associated equipment to be placed in a safe area or ATEX/IECEx area 2. Readily programmable on the front face with the LCD touchscreen micro-console or via SlimSet PC software. TECHNICAL SPECIFICATIONS Marking: II 3 (1) G Ex ec nC [ia Ga] IIC T4 Gc Bidirectional I.S. input: mA, mV, V 1 analog output: voltage or current (active/passive) Accuracy: 0.1% Scale factor programmable Supply for 2-wire sensor For DIN rail mounting Programmable by software or tactile µconsole (optional) Universal power supply: 20 to 250 vac and 20 to 250 vdc
