Digital current transmitter TAIv 60DIN railACvoltage
Add to favorites
Compare this product
Characteristics
- Technology
- digital
- Mounting
- DIN rail
- Electrical characteristics
- AC
- Other characteristics
- voltage
- Primary current
1 A, 5 A
Description

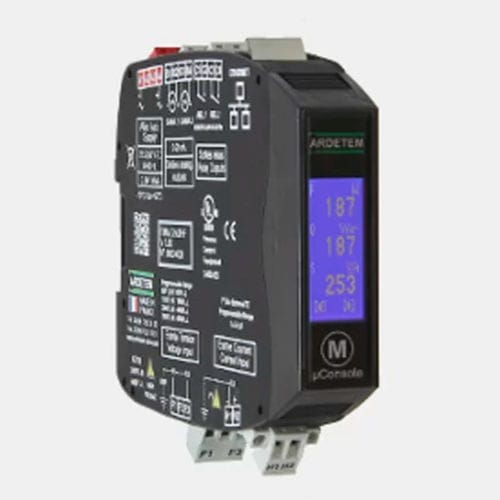

The TAIv60 is a Digital Mesures Transmitter TAIv of AC current, AC voltage and frequency measurement.
Easy configurable by the PC software SlimSet via a standard USB/µUSB cable or tactile LCD micro console.
Suitable for disturbed electrical networks, true RMS measurement.
TECHNICAL SPECIFICATIONS
Fully programmable (CT, VT, … programmable)
Input: In = 1 and 5A ; Un = 100/190/440/600 Vac
Cycle time: 40 ms
Galvanic partition: IN / OUT / SUPPLY: 3kV
1 analog output (mA)
Universal power supply: 20 to 250 vac and 21.5 to 250 vdc
Mini format: 48x96mm Depth: 112mm ;
For DIN rail mounting
Catalogs
TAIv60
2 Pages
