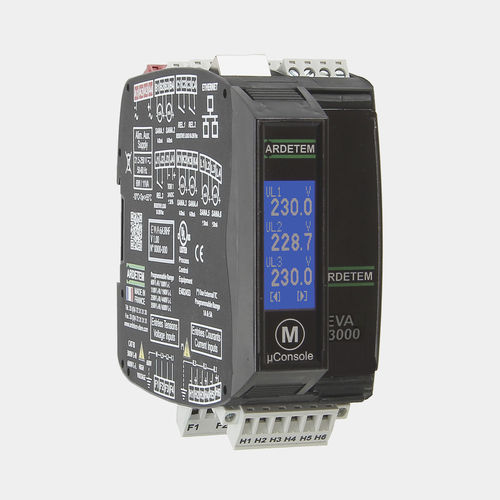

AC voltage transmitter EVA3000

DIN rail

The EVA3000 True RMS Digital Measurement Transmitter for all types of AC networks with Modbus or Ethernet output is specially designed for measuring, controlling and transmitting all the parameters of AC electrical networks where speed and accuracy are required: voltage, current, power, energy, frequency, etc… Easily programmable with SlimSet PC software via standard USB/µUSB cable or with the LCD touchscreen micro-console. Suitable for highly disturbed electrical networks, True RMS measurement. TECHNICAL SPECIFICATIONS For all types of AC electrical networks Fully programmable (CT, VT, … programmable) Input: In = 1 and 5A ; Un = 60V L-N / 100V L-L or 100V L-N, 190V L-L or 250V L-N, 440V L-L or 350V L-N, 600V L-L Cycle time: 20 ms Galvanic partition: IN / OUT / SUPPLY: 2kV 32 measurable parameters Universal power supply: 20 to 250 Vac and 21.5 to 250 Vdc For DIN rail mounting Programmable by optional software
