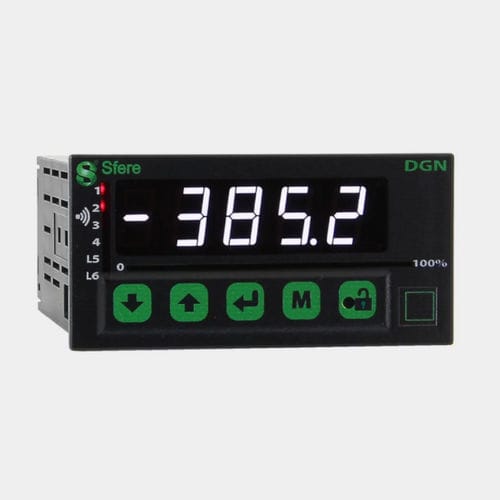

Time panel meter DGN175 S

digital4-digitpanel-mount

Two-Colour Digital Panel Meter Calculator 2 mA inputs 4 digits DGN175 S is a high-precision programmable unit with IP65 front protection. It is used to display one of the 2 inputs or the calculation performed, which can be managed on the various outputs. Each unit is equipped with a 14mm high two-colour 4-digit display, the brightness of which makes it ideal for use in industrial control rooms. The extra thin front panel makes it easy to fit into cabinet fronts. It can be used to display, control and transmit data of any measurable magnitude. Two display versions are available: a two-colour red and white display or a two-colour red and green display. Easily programmable from the front panel via a 5-key keypad or SlimSET software using a standard μUSB cable (optional) Features & Benefits Mathematical calculation between the two channels, with operations and programmable constants Operations : Addition, subtraction, multiplication, division and absolute value of the difference Programmable integration index Sensor or line break detection Self-diagnosis Input overrange Linearisation Scale shift (slope and offset) Brightness adjustment Quick display Simulation function Display colour change Access code TECHNICAL SPECIFICATIONS Display: ±10000 points (4 digits) Electroluminescent in red and green or red and white, to be specified at time of order Display format 48 x 96 mm IP65 front panel 2 Bidirectional current inputs: ±20 mA Accuracy class: 0.05% Programmable scaling factor Special linearisation
