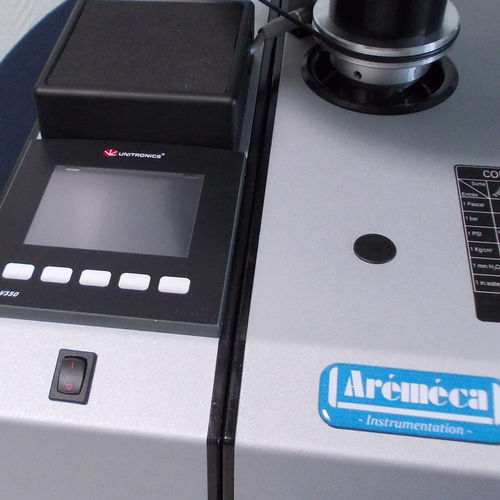

Calibration PLC BH2-BA2

compactwith integrated I/ORS232

This option OP0301 is compatible with all our dead weight testers range BH2 or BA2. It allows high precision calibration. The OP0301 option is a PLC/Computer with several functions : > Assists the operator - The automaton assists the operator in the calibration process by taking into account the various criteria defined by the operator such as : the acceptable deviation, the number of measurement points desired, gravitation, the unit of measurement etc. - It will inform the operator of the masses to be applied to generate the desired pressure at each measurement point - The drive of the set of weights is motorized in order to improve the stability of the balance during measurements and to limit operator manipulations. - The automaton, indicates to the operator the balance of his balance thanks to the dynamic visualization of the position of the piston. - The screen display can be done in several languages: French, German, Italian, Spanish > Ensures traceability of measurements - The automaton will calculate the pressure generated by the scale at time T according to the different sensors: Temperature, Atmospheric pressure. - It will record the results of each measurement and will indicate to the operator whether the result is considered "acceptable" or "deviating" from the criteria defined by the operator. - The automaton allows complete traceability since all the calibration results will be recorded and then exported to an Excel-type spreadsheet for writing the inspection report. - It allows to convert the results in different units like: PSI, kg/cm2 etc… using the same set of main weights in Bar.
