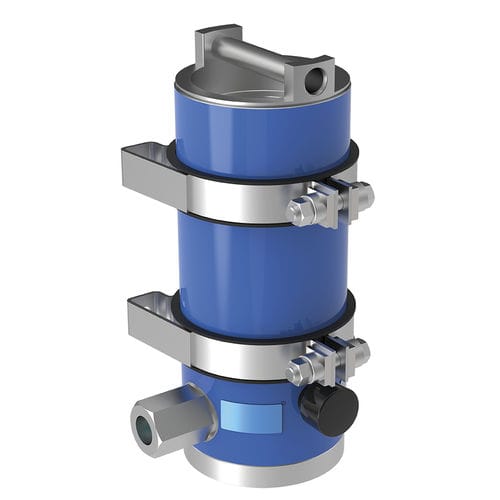

Off-line filter FNS1 040waterhydraulicbasket
Add to favorites
Compare this product
Characteristics
- Designed for
- water, hydraulic
- Filtration element
- basket
- Filtration method
- absorption
- Other characteristics
- off-line
- Operating pressure
Max.: 320 bar
(4,641.208 psi)Min.: 0 bar
(0 psi)- Filtration size
3 µm, 7 µm
- Flow
Max.: 6 l/min
(1.585 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
The FNS 040-105 is used to filter permanently solid particles as well as water from hydraulic oil. The clogging of the filter element is displayed by means of a manometer.
Through a flow control valve the FNS off-line filter can be connected to a high pressure pipe with an inlet pressure of up to 320 bar (minimum inlet pressure approx. 20 bar). The flow rate is kept constant at approx. 6 l/min depending on the inlet pressure.
minimizing downtime due to contamination
high component protection
higher availability and longer machine lifetime
simple retrofitting
