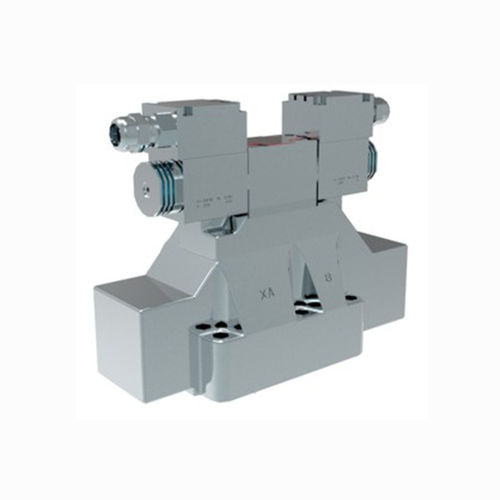

Spool hydraulic directional control valve RNEXH4-25pilot-operated4/3-way4/2-way
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- pilot-operated
- Ports/positions
- 4/3-way, 4/2-way
- Operating pressure
Max.: 420 bar
(6,092 psi)Min.: 0 bar
(0 psi)- Flow rate
Max.: 600 l/min
(159 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
Directional control valve, internally or externally pilot operated with mounting interface acc. to ISO 4401, DIN 24340 (CETOP 08)
Driven by an ISO 4401-03 (CETOP 03) solenoid operated directional valve
High pressure version of main stage 420 bar (6090 PSI) available
High transmitted hydraulic power, optimized design to minimize the pressure drop
Flexibly changed from internal pilot or drain to external by inserting or removing threaded plugs in the main control valve body
Wide range of interchangeable spools and valve controls available
Soft-shift, spool speed, main stroke limiter control options
In the standard version, the valve housing is zinc-coated for 520 h protection acc. to ISO 9227
