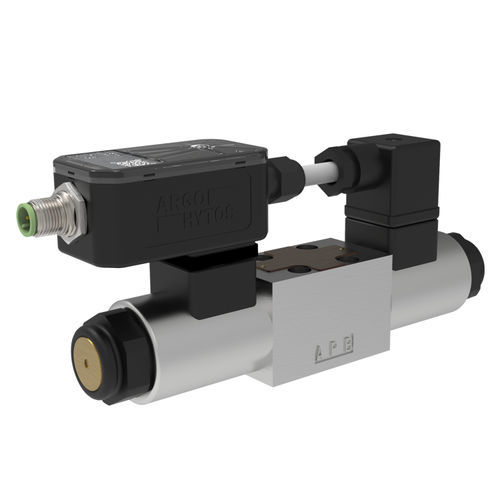

Proportional hydraulic directional control valve PRM2-04

spoolsolenoid-operatedcompact

Proportional directional control spool valve with subplate mounting surface acc. to ISO 4401 (size 04) and DIN 24340 (CETOP 02) The valve is designed for control of movement direction of actuator and continuous speed regulation in the given range The volumetric flow through the valve is proportional to the electrical input commend signal Valve control with the help of external or internal electronic control unit (ECU) in the form of connector plug Manual override of valve spool Optional type of electric connector for the valve without integrated ECU Adjustable position of coil connector suitable for mounting, achievable by turning the coil after loosening the fastening nut In the standard version, the valve body is phosphated. Steel parts are zinc-coated for corrosion protection 240 h v NSS acc. to ISO 9227 Optional increased corrosion protection 520 h in NSS acc. to ISO 9227 by zinc-coating 520 h
