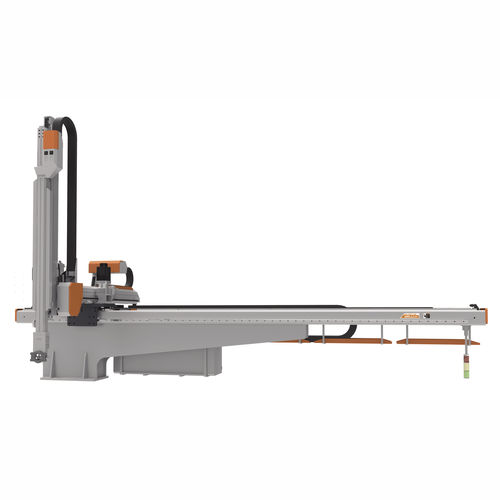

Cartesian robot MaxCW series

3-axisfor injection molding machines

Our MaxCW series is engineered for large tonnage molding machines ranging from (470-2,800 tons). The MaxCW series has a robust open carriage for a large payload capacity and a telescoping arm to fit under low ceilings. The MaxCW is well equipped with standard features such as 4 Vacuum Circuits, 2 Gripper Circuits, 20 Spare Input/Output signals, Pneumatic “Flip” C-Axis Standard, Advanced Vibration Dampening, Supervisory Safety Circuit (STO) and More. If you have any questions about any of these features or if need help sizing a robot give us a call. Key Specifications IMM Range (tons) 1400-2400 Stroke Vertical (mm) 2500 Air Consumption: 4 Drive System: AC Servo Motor Gripper Angle 90 Max Current (amps) 13.6 Max Load (kg) 30 Power Supply 480 VAC 3 Phase 60Hz Stroke Signle Arm Strip (mm) 1840 Stroke Traverse (mm) 4000 Type Telescoping Vertical Arm Weight (kg) 1666 Working Air Pressure (kg/cm) 5~8 Standard Features -Riser/Adapter Plate -4 Vacuum Circuits -2 Gripper Circuits -20 Spare Input/Output signals -Pneumatic “Flip” C-Axis -3-Axis Synchronized Movement -Absolute Encoders (faster robot programming) -Advanced Vibration Dampening -Supervisory Safety Circuit (STO) -Compact Floor Mounted Electrical Cabinet for Easy Maintenance -Fully unlocked robot pendant -Large Mold Storage Capacity -Programs Stored in Cabinet, Not Pendant (data not lost if pendant damaged) -26 ft (8 m) Long Pendant Cable for Maneuverability While Programming -Advanced Mold & Vertical Arm Protection -Quick Change Universal Mounting Plate on Vertical Arm -Euromap Adapter for Both 12 & 67 Molding Machines -Telescoping Vertical Arm for Low Height Clearance
