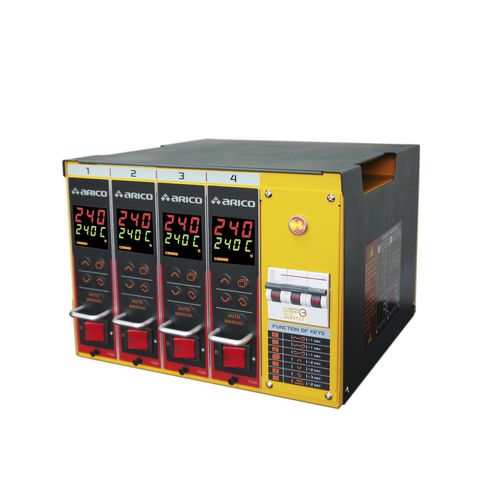

Temperature controller with LCD display TC5H 4

PIDhot runner

Features: Simple designs LCD display Internal alarm buzzer Built-in NFB switch One-key activated / deactivated standby function Fast alternative for 230V/380V power input Universal standardized chassis for any brand of module Specifications: Overvoltage protection, preventing burning of module resulting from faulty wiring The hearter shoring detected Automatic detection of wire breakage of heater TRIAC short-circuit protection Detection against temperature wire breakage and reverse Troubleshooting of Temperature Sensor wiring. Blown Fuse detection Display function of current and output ratio. Smart SOFT START function Manual output in case of temperature sensor unusually Auto/Manual Selection Function PID Automatic Temperature Control Output percentage limit setting Two options of temperature sensor wire types (J/K) Two options of temperature unit (°C/°F) Six alarm options RS485 communication function: ASCII and RTU mode (Optional) K TYPE Thermocouple range: 0 ~ 600 °C ( 32~999 °F ) J TYPE Thermocouple range: 0 ~ 600 °C ( 32~9999 °F )
