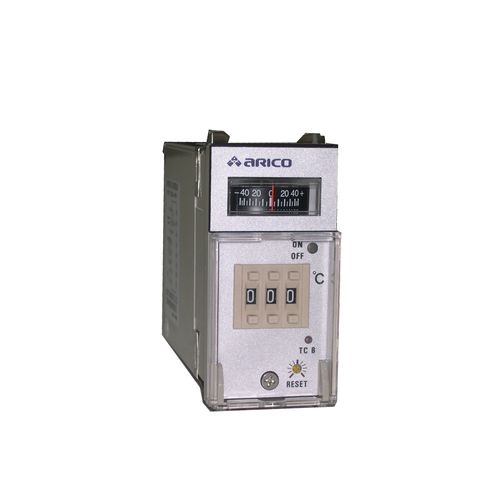

Analog temperature controller TC2DA

thermoelectric

Features: With thermocouple-break indication ON / OFF or proportional control selectable Heater-break indication selectable 5 alarm output modes selectable Specifications: Power supply：110/220VAC Input Type：Thermocouple K、J Setting Accuracy：±0.5﹪of full scale Indication Accuracy：±0.5﹪of full scale Control Mode：ON/OFF action、Proportional action Proportional band：3﹪of full scale（fixed） Proportional recycle：Relay output 20 sec、Current output 2sec Reset Range：3﹪of full scale Ambient Temperature：-10~+55℃ Supply voltage：110/220VDC Control：Relay contact 1C 250VDC 5Amp（max） Voltage output：DC5V、20mA、HI-level：DC5V+1V、LO-level：DC0.5V Alarm modes：5 Dimensions：48*96、49*96、72*72、96*96 (unit：mm) Ambient condition : Temperature 0~55℃/32~130℉ & Humidity 10%~80% (non-condensing)
