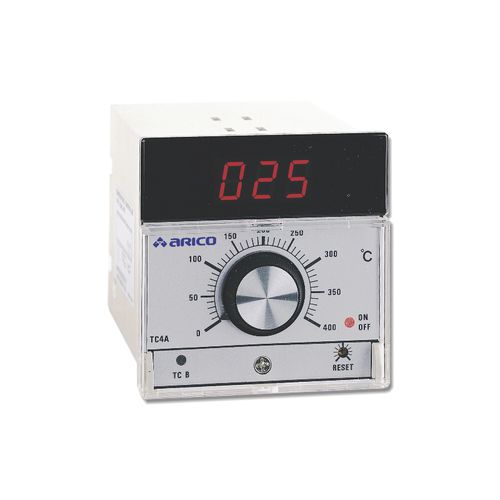

Digital temperature controller TC4ADthermoelectric
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Type
- thermoelectric
- Maximum temperature
Max.: 55 °C
(131 °F)Min.: -10 °C
(14 °F)
Description
Features:
With thermocouple-break indication
ON / OFF or proportional control selectable
Heater-break indication selectable
5 alarm output modes selectable
Specifications:
Setting Type：Analog setting
Display Type：Digital display
Output Type：Relay / Voltage ( 12 VDC )
Control Mode：Proportional / ON / OFF
Alarm：With Alarm / Without Alarm
Heater / Thermocouple break indication：H / B alarm output / None
Input Type：Thermocouples : J、K
Setting accuracy：± 0.5% full scale
Indication accuracy：± 0.5% full scale
Proportional band：± 3% full scale
Reset Range：± 3% full scale
Proportional Cycle：Relay output 17 sec ； Voltage output 2 sec
