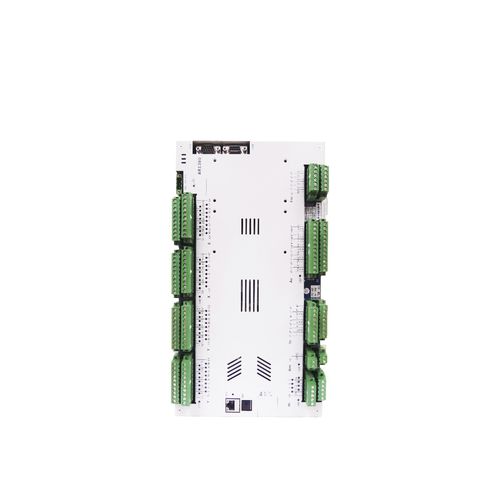

PLC AR1260

Features: Fast software interrupt timing is 0.25ms apply to control, enhance the accuracy of more than 2 times the displacement It is simple to update all of program via USB memory driver DCS control (HMI and Remote I/O module) for easy access of external device and/or controller Various HMI size options: 5.6", 8", 10.4" and 12.1" or touch panel(10.4" & 12.1") 3 of high speed 32 bits CPU (266MHz) High speed Ethernet communication between HMI and Remote I/O module RS485 and SKY-Link(Option) Interface State-of-the-art window system HMI Screen Editor design by ARICO PLC ladder editor for process program The Demolished architecture, CPU board can be upgraded to more powerful new one on base main control board It is non-industrial personal computer board, because the CPU of PC update very fast, face stop manufacture and version change, software maintain and cost will go high I/O function define self and shift function Flip up icon of screen and alarm message PLC Real-Time control The 10 levels control for user The present screen picture can be saved via USB port to external memory device (USB memory device)
