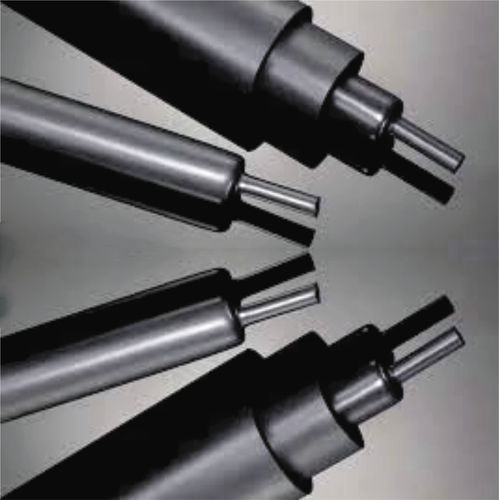

Busbar sleeve HBM seriesheat-shrinkabletubularpolyolefin
Add to favorites
Compare this product
Characteristics
- Type
- heat-shrinkable
- Structure
- tubular
- Applications
- for busbar
- Material
- polyolefin
- Protection level
- halogen-free, abrasion-resistant, UV-resistant, UL, anti-corrosion, moisture-resistant, fire-resistant, weather-resistant, weather-proof
- Color
- black
- Other characteristics
- flexible, high-temperature, self-extinguishing
- Diameter
30 mm, 50 mm, 65 mm, 75 mm, 100 mm
(1.2 in, 2 in, 2.6 in, 3 in, 3.9 in)- Temperature
110 °C
(230 °F)- Length
20 m
(65'07" )
Description
Item : HBM (Up to 11KV)
Features:
•Medium wall bus bar tubing
• Cross linked polyolefin
• Good tracking resistance
• Excellent electrical properties
• Halogen free
• UV and weather resistance
• Up to 11kV
• Min. full recovery temp.: 110°C
