- Button head rivet
- Arihant Panel Fittings Private Limited

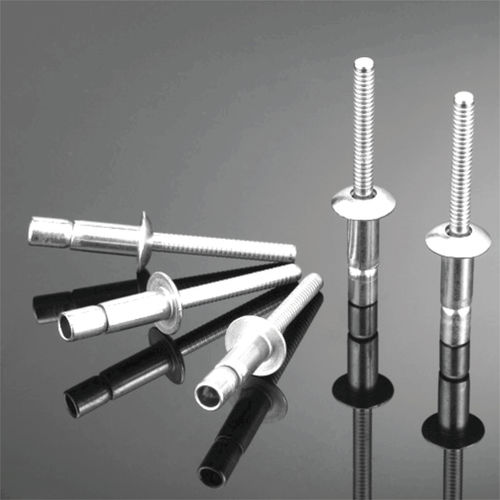

Dome head rivet SS - CFix serieszinc-coated steelsilver-coloredthreaded
Add to favorites
Compare this product
Characteristics
- Head
- dome head
- Material
- zinc-coated steel
- Color
- silver-colored
- Other characteristics
- threaded
- Body diameter
4.8 mm, 6.4 mm
(0.19 in, 0.25 in)- Min. and max. grip range
Min.: 1.63 mm
(0.06 in)Max.: 15.87 mm
(0.62 in)- Length
18 mm, 24 mm, 33 mm
(0.71 in, 0.94 in, 1.3 in)- Head diameter
10.1 mm, 13.3 mm
(0.4 in, 0.52 in)- Head thickness
2.29 mm, 2.9 mm
(0.09 in, 0.11 in)- Shear strength
Min.: 1,450 N
Max.: 11,700 N
- Tensile strength
Min.: 1,150 N
Max.: 10,400 N
