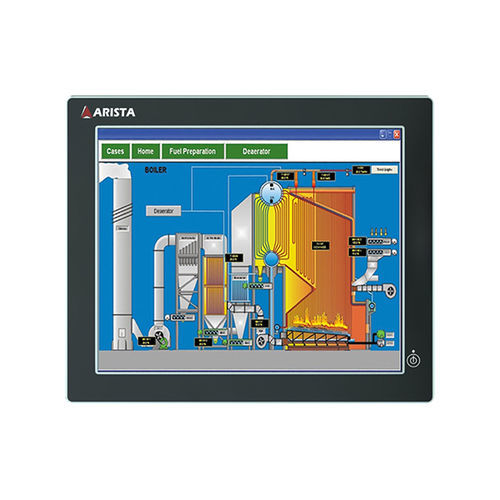

LCD panel PC ARP-2919AP
5-wire resistive touch screen19"1280 x 1024

LCD panel PC
LCD panel PC
LCD panel PC
LCD panel PC
LCD panel PC
Add to favorites
Compare this product


Characteristics

Screen type
LCD, 5-wire resistive touch screen
Display size
19"
Resolution
1280 x 1024
Processor
Intel® Core i7, 6th generation Intel® Core™
Construction
mobile, aluminum frame, stainless steel frames
Applications
industrial
Protection level
NEMA 4

Description

Very High Brightness LCD (1,000 nits) Flush Bezel 5-Wire Resistive Touchscreen Aluminum or Stainless-Steel Bezel Intel Core i7 Mobile / Intel 6th Gen Core-I CPU Up to 16GB DDR3/ Up to 32GB DDR4 SO-DIMM Optional 2.5" SSD Dual Gigabit Ethernet 2x RS-232/422/485 BIOS Selectable 4 x USB 2.0, 2 x USB 3.0 Backlight Lifetime (Hours) - 50,000 - 50,000 Visual Characteristics -   Colors - 16.7 million - 16.7 million Aspect ratio - 5:4 - 5:4 Viewing angle (V/H) - 160° / 170° - 160° / 170° Contrast ratio - 1000 : 1 - 1000 : 1 Brightness - 1000 nits - 1000 nits Touch Screen -   Technology - 5 Wire Resistive - 5 Wire Resistive Interface - USB - USB Front Bezel -   NEMA 4 - Aluminum - Aluminum NEMA 4x - Stainless Steel - Stainless Steel System -   CPU - Intel i7-3612QM CPU - Intel i7-6700T CPU Chipset - Intel QM77 - Q170 Memory - Up to 16GB DDR3 - Up to 32GB DDR4 Video Controller - Intel HD Graphics 4000 - Intel® Gen9 Intel Graphics External Video Output - DVI, HDMI, Display port - DVI, HDMI, Display port Storage Option - 2.5" SATA SSD - 2.5" SATA SSD CFast Card - N/A - N/A Keyboard / Mouse - USB / PS2 - USB / PS2 Audio - Line in, Line Out, Mic-In - Line in, Line Out, Mic-In Watchdog Timer - Programmable 1~255 sec - Programmable 1~255 sec Remote Boot - PXE - PXE Expansion Slot - 1 x PCIe x8 - 1 x PCIe x16 I/O Communication -   USB Port - 4 x USB 2.0, 2 x USB 3.0 - 2 x USB 2.0, 4 x USB 3.0, Serial Port - 2 x RS-232/422/485 - 2 x RS-232/422/485
